In the realm of precision motion control, NMB Technologies Corporation (a member of the MinebeaMitsumi Group) has established its market leadership through deep engineering expertise. According to their latest technical documentation, NMB's core competency lies in the R&D and manufacturing of single-row radial deep groove ball bearings, with a product range spanning from an astonishing 1.4978 mm up to 35 mm in outer diameter. This is not merely a of dimensions, but a culmination of material science and tribology. For engineers seeking high-performance solutions, understanding NMB's specific parameters in material formulation, cage design, and lubrication technology is key to optimizing mechanical designs.

Core Architecture and Basic Specifications

A standard NMB precision ball bearing is not a simple metal ring, but a complex assembly composed of four core subsystems: the outer ring, inner ring, retainer (cage), and balls. Its primary function is to support rotational motion and transmit kinetic energy, where the level of precision directly dictates the energy efficiency and lifespan of the end machinery.

In standard configurations, NMB offers an exceptionally rich array of material and structural options:

• Ring Materials: Beyond conventional Chromium steel and Stainless steel, NMB introduces proprietary corrosion-resistant steels.

• Retainer Types: To meet varying speed and noise requirements, they provide three main structures: Ribbon, Plastic, and Crown.

• Seals and Shields: To prevent lubricant leakage and block contaminants, options include Metal shields, Rubber non-contact seals, Rubber contact seals, and Teflon seals.



Hybrid Ceramic Bearings: Tackling the Dual Challenge of Magnetism and Speed

In high-end applications, the physical limits of traditional all-steel bearings become apparent. The Hybrid Ceramic Ball Bearing is NMB's flagship solution designed for high-speed and non-magnetic requirements. Its structural design utilizes corrosion-resistant stainless steel for the rings, while the rolling elements are replaced with Silicon Nitride ceramic balls.

This hybrid construction delivers significant leaps in physical performance:

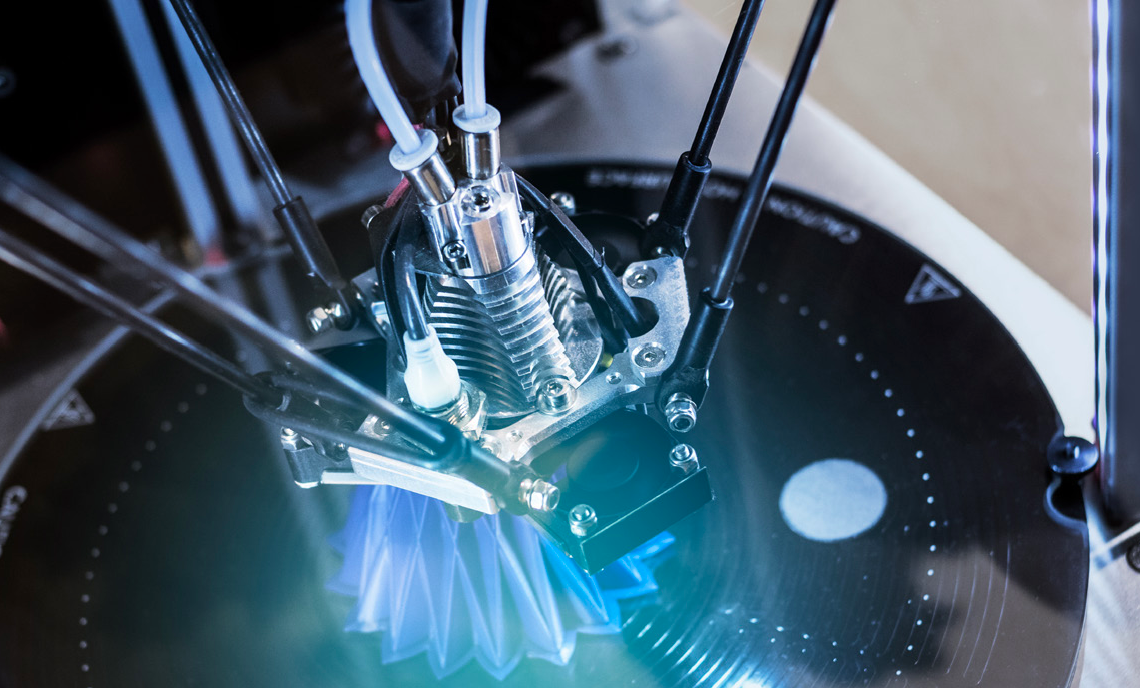

1. Elimination of Magnetic Interference: While stainless steel is corrosion-resistant, it retains inherent magnetic and conductive properties. By integrating ceramic materials, NMB successfully neutralizes these attributes. This feature is critical in 3D printing galvanometer applications, as magnetic interference can cause hysteresis errors in laser positioning.

2. Enhanced Kinetic Performance: Compared to steel balls, ceramic balls have lower density and higher hardness. This means that during high-speed rotation (such as in automotive turbochargers or high-end skateboard bearings), centrifugal forces are reduced, and wear is minimized, significantly extending service life.

Giga Protection®: Redefining Corrosion Resistance Standards

For extreme corrosive environments like marine, medical, and chemical industries, NMB did not stop at ordinary stainless steel. Instead, they partnered with steel suppliers to develop a patented material: Giga Protection® (GP).

According to NMB's internal testing data, this new material offers rust and corrosion resistance that is 20 times greater than that of ordinary stainless steel bearings. This statistic implies that in environments exposed to saltwater, harsh weather, or chemical reagents (such as fishing reels, weather meters, or surgical equipment), using GP bearings can drastically reduce defect rates caused by rust, thereby lowering maintenance costs and boosting end-user satisfaction.

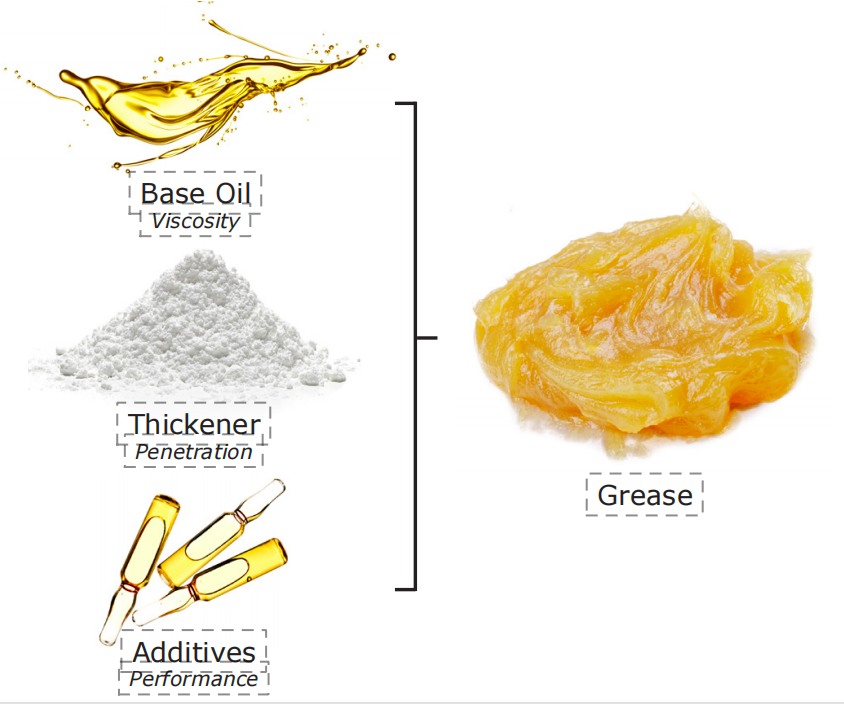

Lubrication Engineering: From Lithium Soap to Conductive Grease

The choice of lubricant often determines a bearing's performance under specific conditions. NMB showcases a massive library of lubricants capable of providing customized solutions for various viscosity and conductivity needs:

• Lithium soap grease: Suitable for general industrial standard scenarios.

• Urea grease: Offers a wider temperature adaptation range.

• Fluorinated grease: Designed for chemical resistance and extreme environments.

• Conductive grease: Used for special electronic applications requiring electrostatic discharge.

•

Extreme Miniaturization: The Guinness World Record 1.4978 mm

The pinnacle of NMB's technical prowess is exemplified by its creation of the world's smallest commercially available ball bearing. This achievement stemmed from the Swiss watchmaking industry's rigorous demands for Tourbillon axles. Traditional Tourbillon manufacturing relies on precious jewels like ruby, presenting immense difficulties.

Through ultra-precision machining, NMB developed a miniature bearing with an outer diameter of just 1.4978 mm. This size is not only small enough to replace traditional jewel bearings but also offers higher reliability and assembly efficiency due to its standardized rolling bearing structure. This breakthrough not only earned NMB a Guinness World Record certification but also marked its absolute dominance in the field of micron-level precision machining.

In summary, NMB Technologies does not simply sell off-the-shelf components; it provides comprehensive engineering services based on materials science, tribology, and geometry. Whether solving electromagnetic interference through hybrid ceramic technology, combating chemical corrosion with Giga Protection®, or challenging physical limits to manufacture micro-components, NMB demonstrates the technical depth of a world-class bearing manufacturer.
